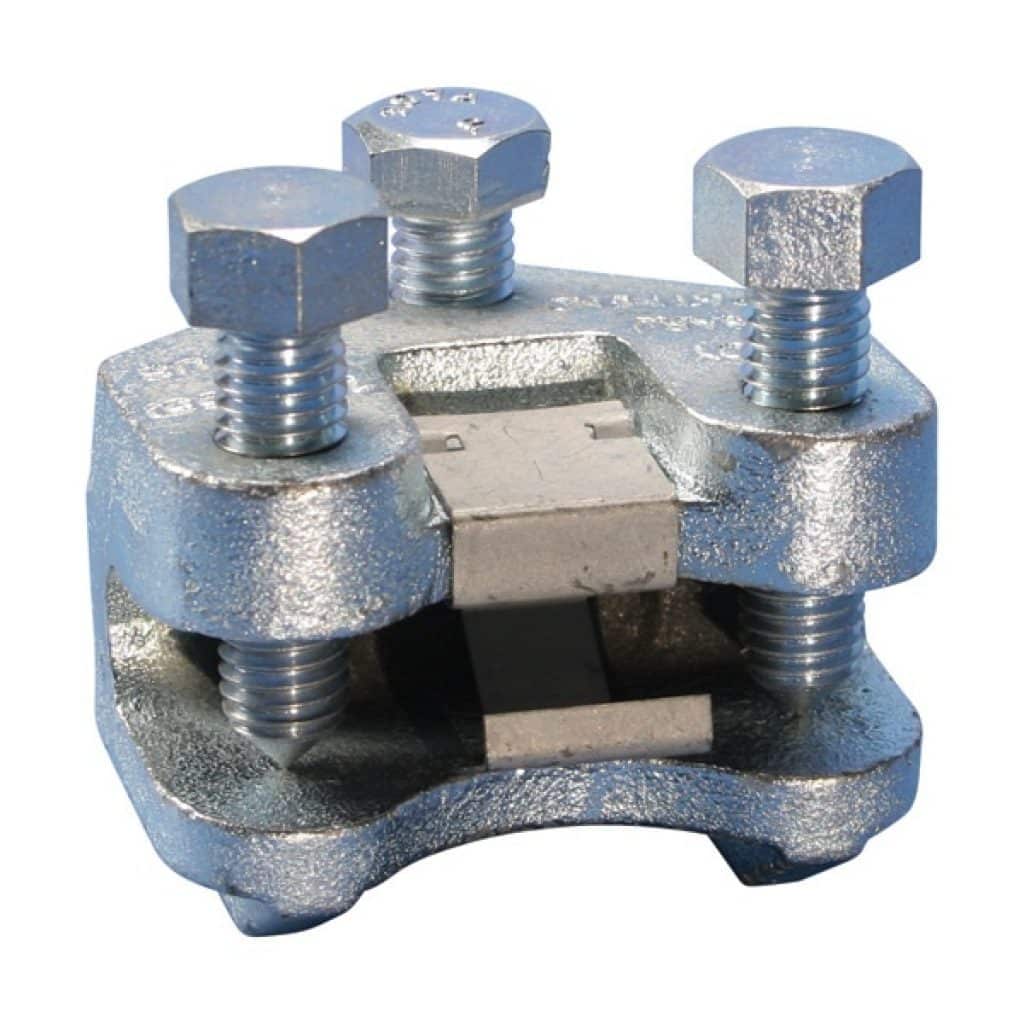

Bar Joist Attachment
Bar Joist Attachment
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages

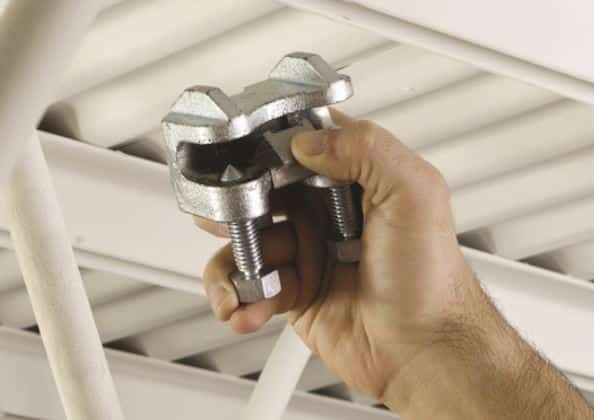

- Easy installation and inspection of the seismic reinforcement
- Pre-assembled
- Meets the NFPA-13 requirements for seismic bracing
- Material: cast iron, electrogalvanised
- Screw diameter:1/2”
- For beams or girders
GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 401001 Parallel | 6,4 - 12,7 | 25 - 250 | 13340 | Add | |||||
| 401001 Perpendicular | 6,4 - 12,7 | 25 - 300 | 16630 | Add |
AllegatiAttachments
1 attachment:
-
Technical Data Sheet
150 KB
