CORH N-III Fire protection wrap
CORH N-III Fire protection wrap
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages

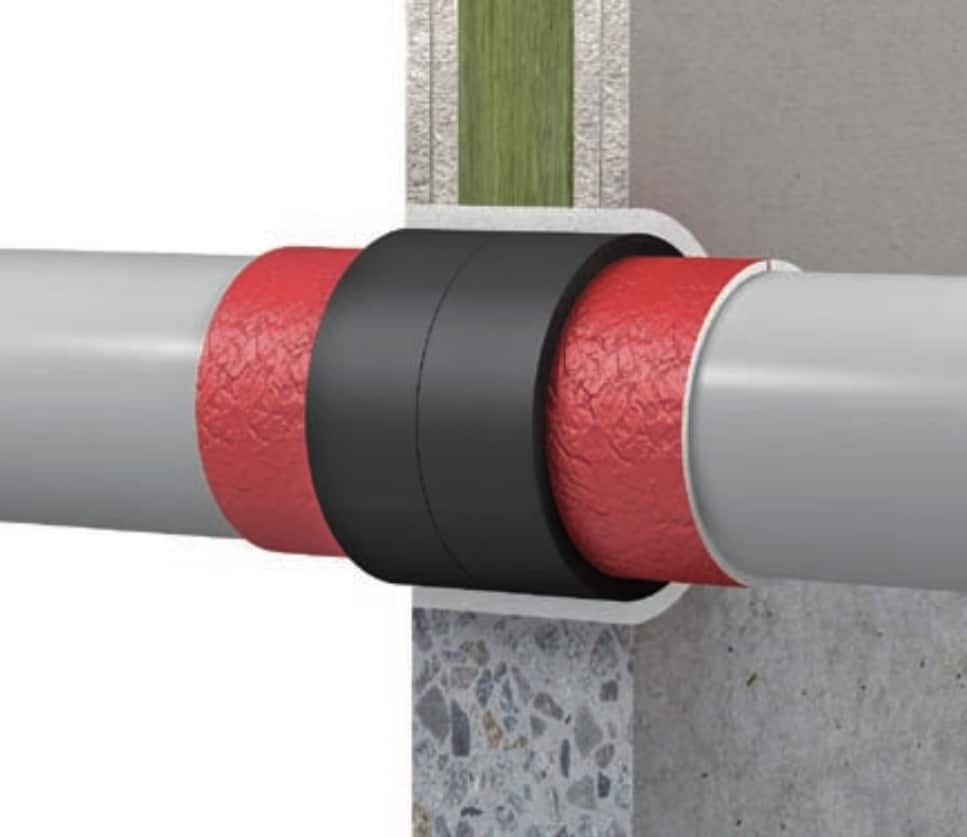

- For combustible pipes, bare or insulated, and multi-layer in wall penetrations, flexible walls and ceilings
- Suitable for areas that are difficult to access, such as corners
- No tools required for installation
- One roll for many applications
- Easy to install by adhering the roll around the pipe. A minimum number of layers of band is required
- Reduced wall holes can be used
- High flexibility of the self-adhesive band
- Usable even in humid conditions

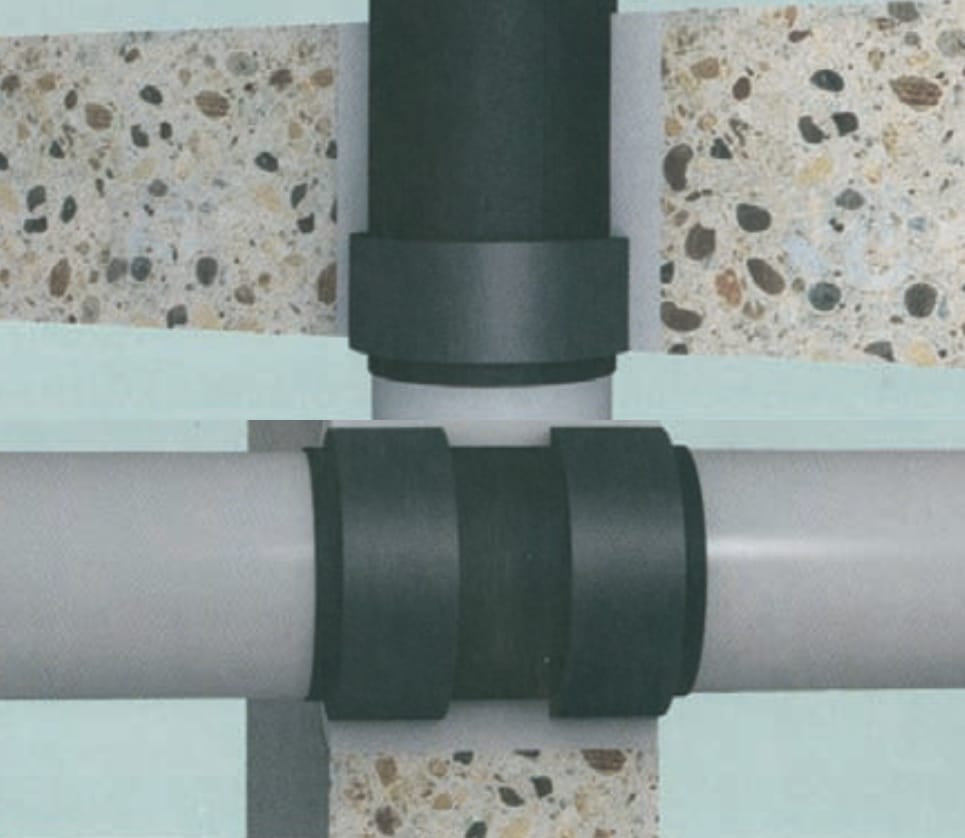

- It is possible to have several pipes in contact
- Sticks to itself throughout application
- Fire resistance up to EI 240
- ETA certificate, CE marked

GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 218400 | 12,5 meters x 5 cm thickness 2 mm | Add |
AllegatiAttachments
6 attachments:
-
Mounting instructions
4 MB -
Technical Data Sheet
185 KB -
DoP
32 KB -
ETA
818 KB -
CE
92 KB -
Product selection table
130 KB
