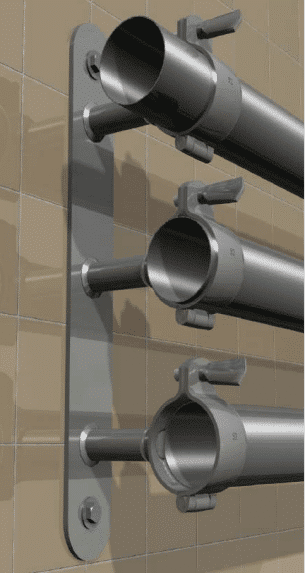

Hinged pipe clamp – AISI 304
Hinged pipe clamp – AISI 304
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages
- Made of AISI 304 stainless steel
- Rounded edges, no sharp edges
- Only one screw with wing nut plus hinge
- Pre-assembled
- Circular clamp for perfect pipe-clamp adhesion
- On request available in AISI 316
GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 6160017 | 17 | 2,5 | 1/4” | 35 | 52 | Add | |||
| 6160021 | 21,3 | 2,5 | 3/8” | 35 | 58 | Add | |||
| 6160025 | 25,4 | 2,5 | 1/2” | 35 | 60 | Add | |||
| 6160027 | 26,9 | 2,5 | 1/2” | 35 | 64 | Add | |||
| 6160028 | 28 | 2,5 | 1/2” | 35 | 64 | Add | |||
| 6160034 | 34 | 2,5 | 1/2” | 35 | 70 | Add | |||
| 6160038 | 38 | 2,5 | 1/2” | 35 | 76 | Add | |||
| 6160040 | 40 | 2,5 | 1/2” | 35 | 76 | Add | |||
| 6160042 | 42,4 | 2,5 | 1/2” | 35 | 77 | Add | |||
| 6160048 | 48,3 | 2,5 | 1/2” | 35 | 84 | Add | |||
| 6160050 | 50 | 2,5 | 1/2” | 35 | 88 | Add | |||
| 6160052 | 52 | 2,5 | 1/2” | 35 | 88 | Add | |||
| 6160054 | 54 | 2,5 | 1/2” | 35 | 88 | Add | |||
| 6160060 | 60,3 | 2,5 | 1/2” | 35 | 98 | Add | |||
| 6160063 | 63,5 | 2,5 | 1/2” | 35 | 101 | Add | |||
| 6160070 | 70 | 2,5 | 1/2” | 35 | 107 | Add | |||
| 6160076 | 76,1 | 2,5 | 1/2” | 35 | 115 | Add | |||
| 6160080 | 80 | 2,5 | 1/2” | 35 | 120 | Add | |||
| 6160085 | 85 | 2,5 | 1/2” | 35 | 124 | Add | |||
| 6160089 | 88,9 | 2,5 | 1/2” | 35 | 126 | Add | |||
| 6160101 | 101,6 | 2,5 | 1/2” | 35 | 143 | Add | |||
| 6160104 | 104 | 2,5 | 1/2” | 35 | 144 | Add |
AllegatiAttachments
1 attachment:
-
Technical Data Sheet
183 KB
