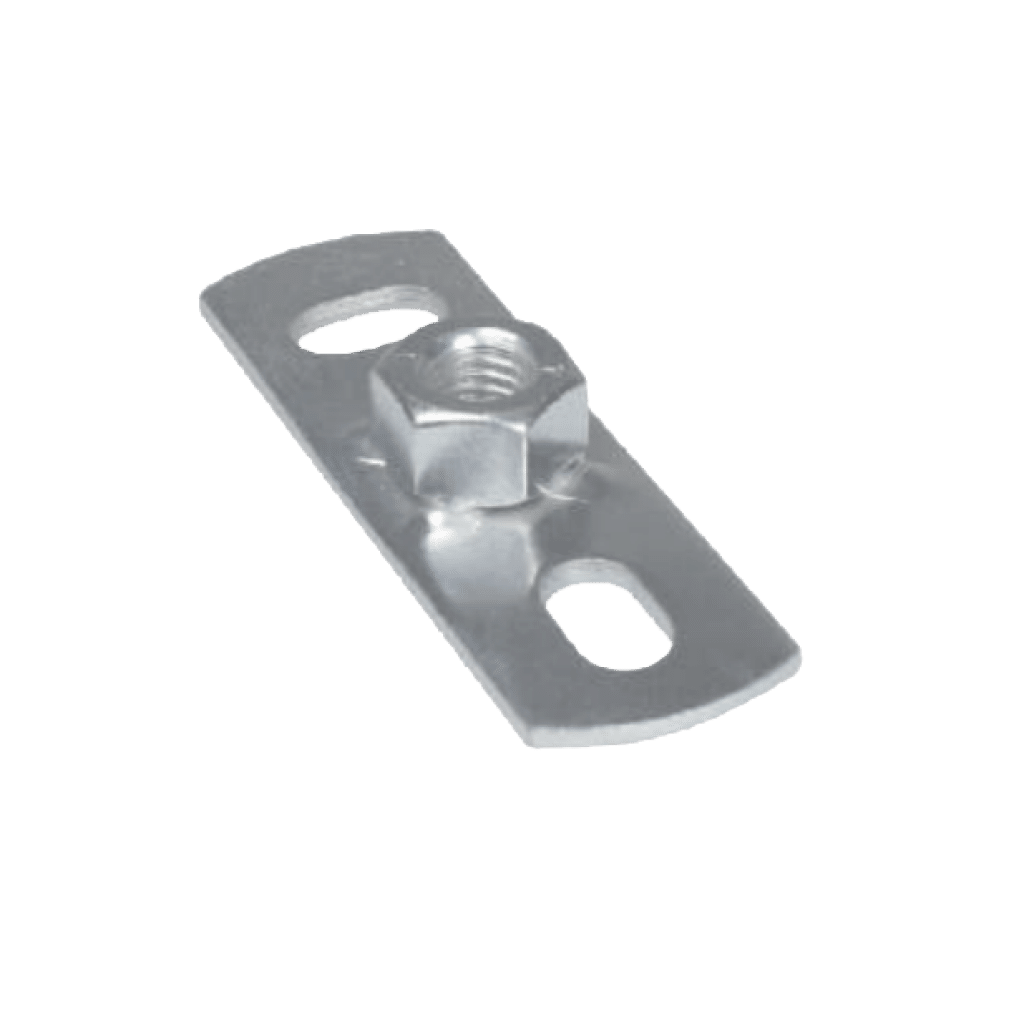

Pipe clamp wall plate – AISI 316
Pipe clamp wall plate – AISI 316
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages
- Made of AISI 316 stainless steel

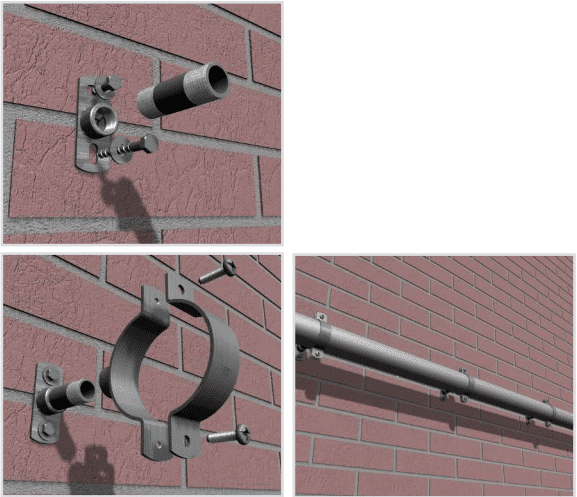

- 90° slots to simplify fastening
GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 624R08 | with nut | M8 | 80 | 25 | 15 x 8,5 | 3,0 | 2500 | Add
|
|
| 624R10 | with nut | M10 | 80 | 25 | 15 x 8,5 | 3,0 | 2500 | Add
|
|
| 624R001 | with 1/2 sleeve | 1/2” | 80 | 25 | 15 x 8,5 | 3,0 | 2500 | Add
|
|
| 624R512 | with nut | M12 | 145 | 35 | 30 x 11 | 4,0 | 3800 | Add
|
|
| 624R516 | with nut | M16 | 145 | 35 | 30 x 11 | 4,0 | 3800 | Add
|
