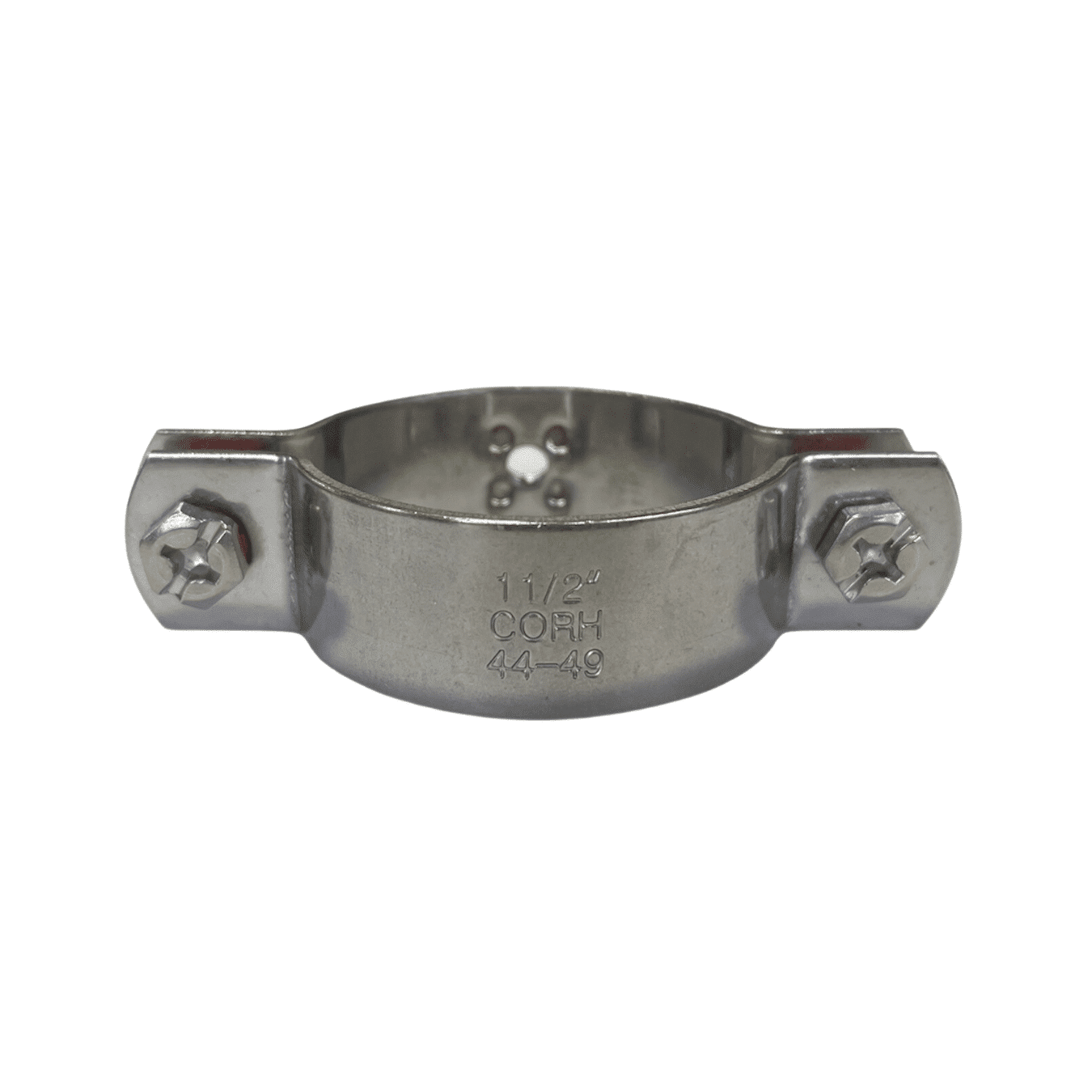

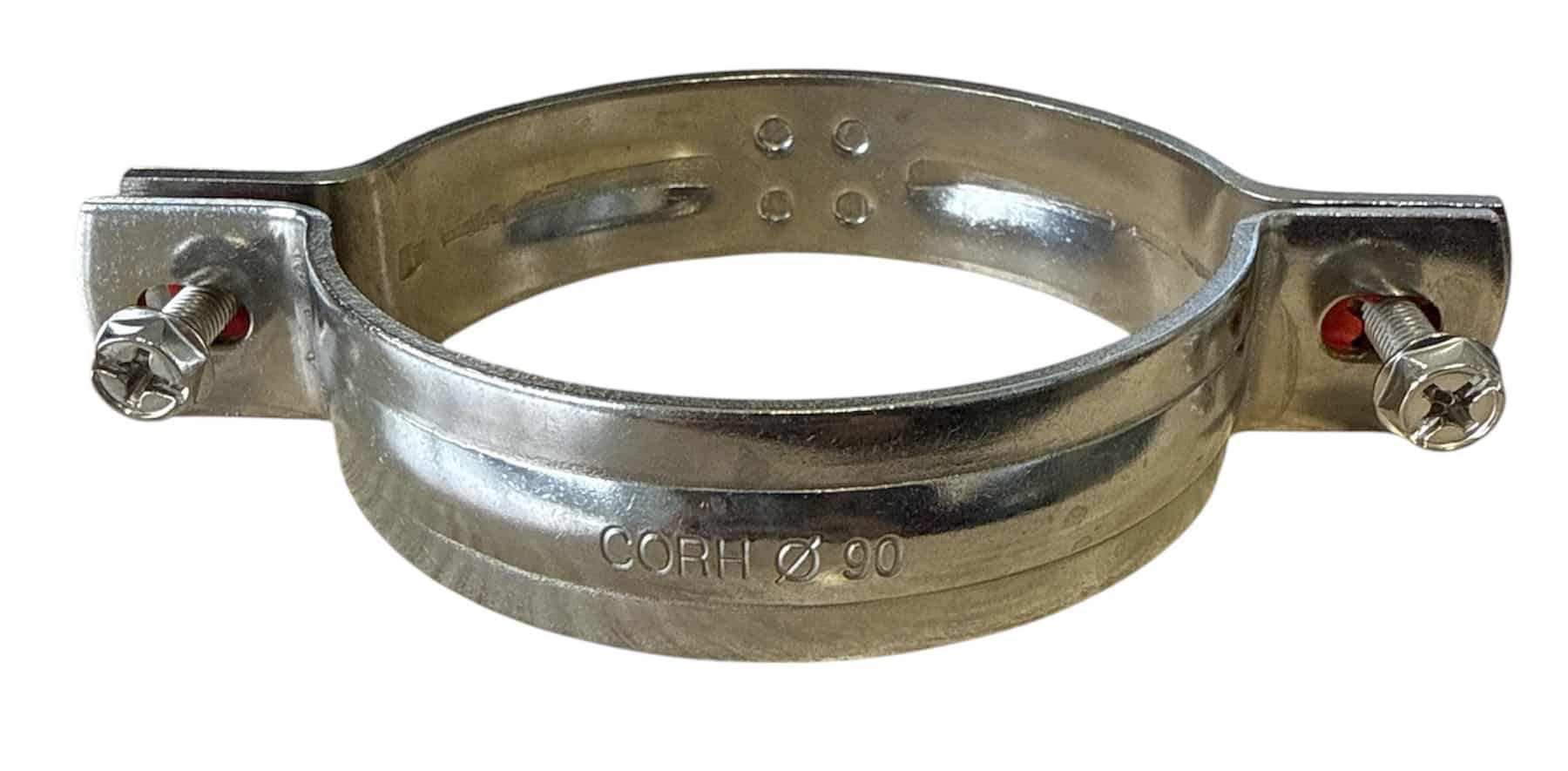

Pipe clamp without hanger bolt and plug – AISI 304
Pipe clamp without hanger bolt and plug – AISI 304
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages
- Polished
- M8 nut for diameters from 3/8 to 2″, M10 nut for diameters greater than 2”

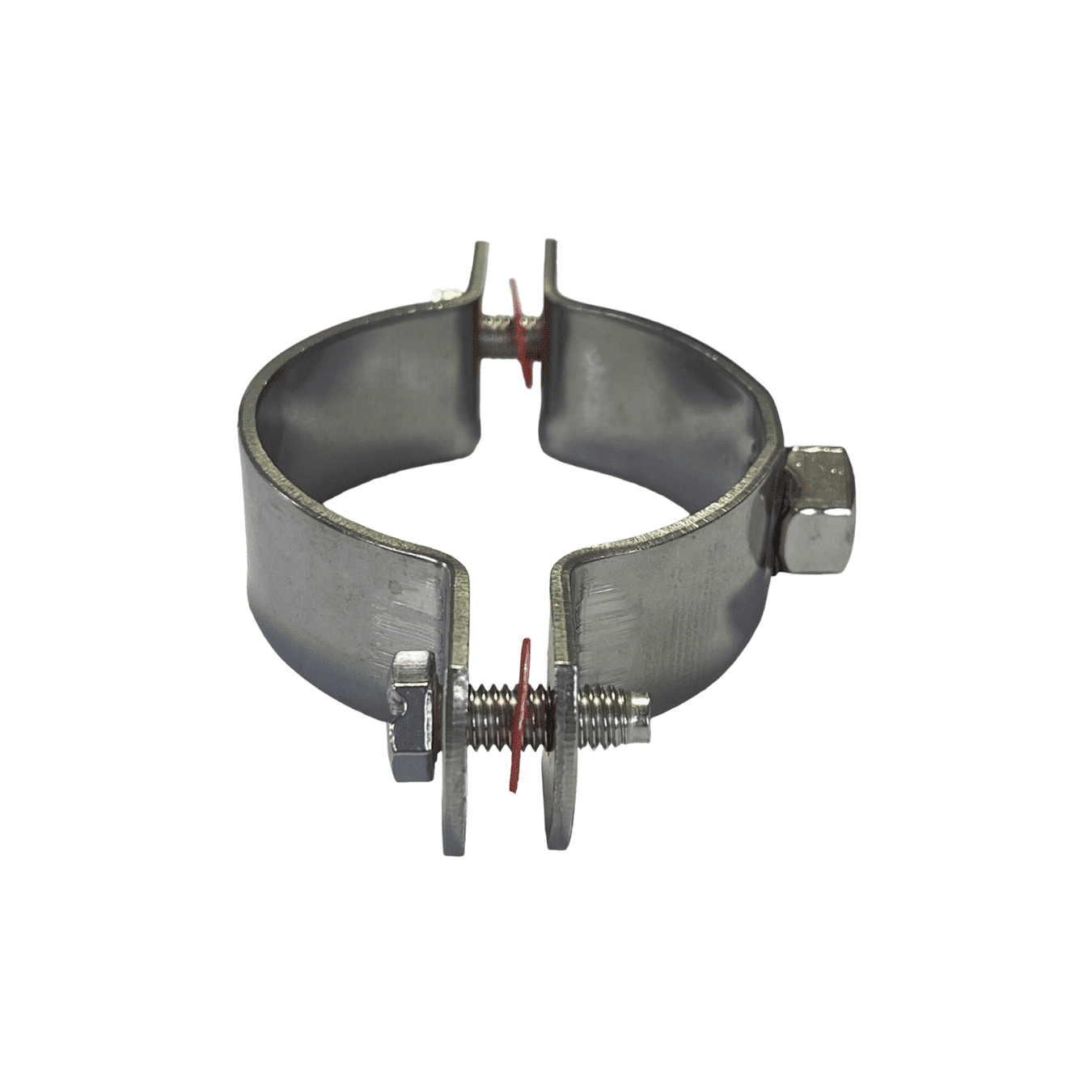

- Diameters from 3/8 to 2″ : pre-assembled clamp, with retaining ring on the side screws
- Side screws in stainless steel, TE combi cut
- For installations in corrosive environments
- Rounded edges, no sharp edges
GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 619X18 | (16-19) 3/8 | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X21 | (20-23) 1/2 | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X27 | (26-28) 3/4 | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X34 | (32-35) 1” | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X42 | (40-43) 11/4 | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X48 | (44-49) 11/2 | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X60 | (57-61) 2” | M8 | M6 x 16 | 20 x 2,0 | 1120 | Add | |||
| 619X75 | 2 1 /2 | M10 | M6 x 20 | 30 x 2,5 | 1610 | Add | |||
| 619X90 | 3" | M10 | M6 x 20 | 30 x 2,5 | 1610 | Add | |||
| 619X10 | 4" | M10 | M6 x 20 | 30 x 2,5 | 1610 | Add | |||
| 619X11 | 5" | M10 | M6 x 20 | 30 x 2,5 | 1610 | Add | |||
| 619X12 | 6" | M10 | M6 x 20 | 30 x 2,5 | 1610 | Add |
