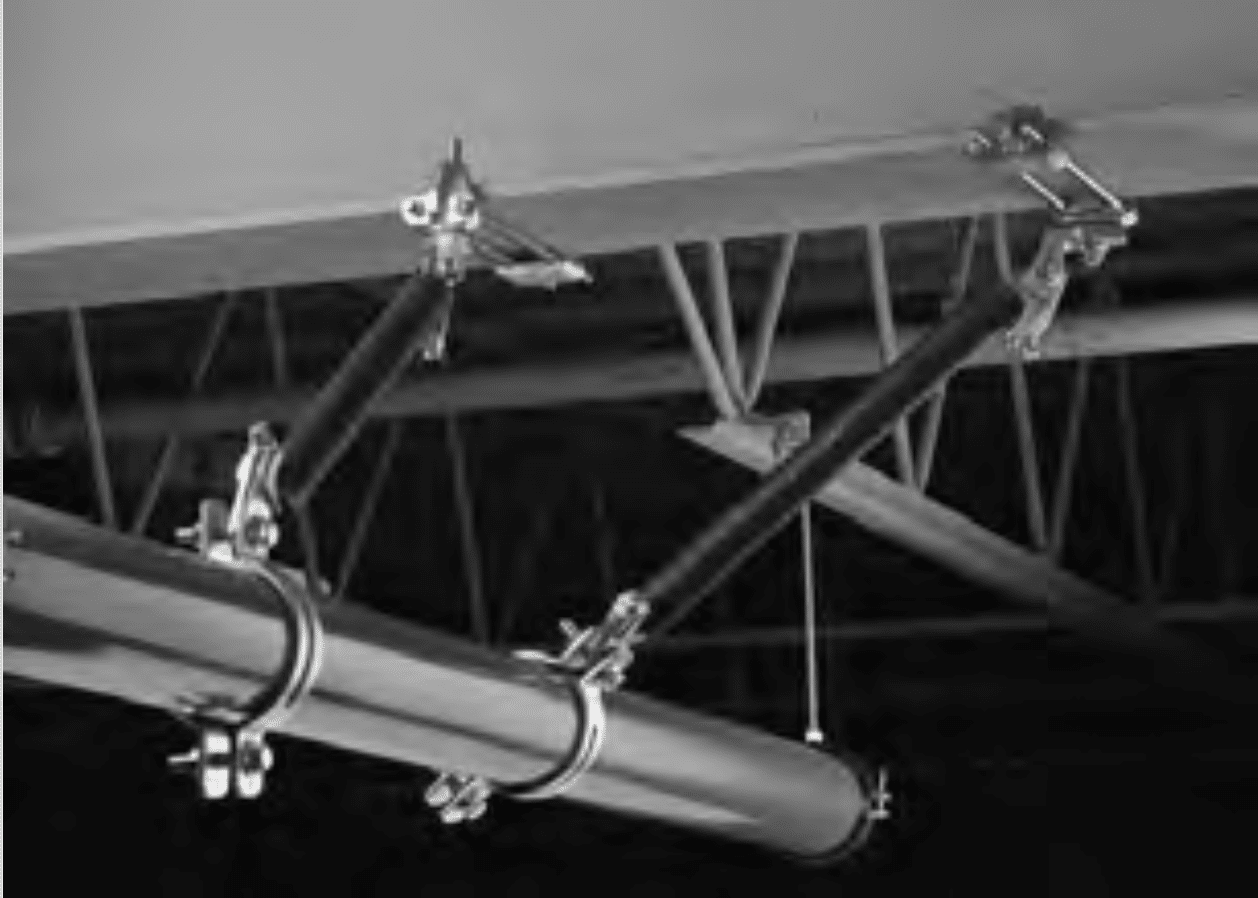

Universal sway brace
Universal sway brace
Ricerca nel catalogo
Search in the catalogue
Technical specifications and advantages
- Can be used for lateral and longitudinal bracing
- Meets the NFPA-13 requirements for seismic bracing
- Material: steel and cast iron, electrogalvanised
- Easy installation
GammaRange
AllegatiAttachments
GammaRange
Technical Data
| Code | D [mm] | D ["] | DN | G | B [mm] | H [mm] | b x s [mm] | Working Load (N) | Add to Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 4013034 | 1 | 25 | 275 | 2910 | Add | ||||
| 4013042 | 1 1/4 | 32 | 287 | 2910 | Add | ||||
| 4013048 | 1 1/2 | 40 | 297 | 2910 | Add | ||||
| 4013060 | 2 | 50 | 206 | 2910 | Add | ||||
| 4013076 | 2 1/2 | 65 | 225 | 2910 | Add | ||||
| 4013090 | 3 | 80 | 238 | 2910 | Add | ||||
| 4013110 | 4 | 100 | 270 | 2910 | Add | ||||
| 4013140 | 5 | 125 | 308 | 2910 | Add | ||||
| 4013168 | 6 | 150 | 346 | 2910 | Add | ||||
| 4013219 | 8 | 200 | 400 | 2910 | Add | ||||
| 4013273 | 10 | 250 | 452 | 2910 | Add |
AllegatiAttachments
1 attachment:
-
Technical Data Sheet
137 KB
