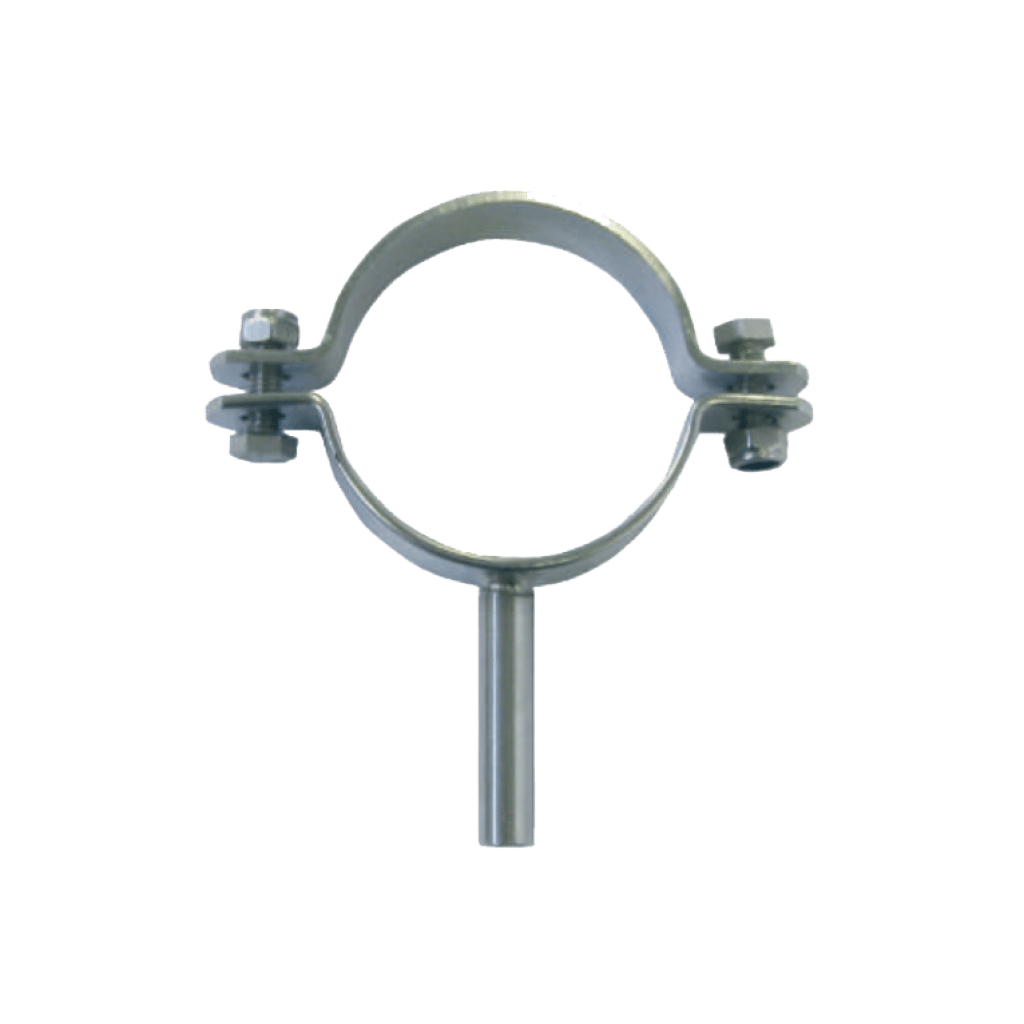

Two-piece pipe collar with column – AISI 304

Home > Prodotti >

Home > Products >

Ricerca nel catalogo

Search in the catalogue

Technical specifications and advantages

Made of Aisi 304 stainless steel
Rounded edges, rounded column
Closing screws: M8x20 up to dimension 34 mm, M8x25 for dimensions greater than 34 mm
Pre-assembled with self-locking nuts
Circular clamp for perfect pipe-clamp adhesion – TIG welding of the column
Column length: 60 mm
Available in AISI 316 upon request

GammaRange

AllegatiAttachments

GammaRange

Technical Data

Code	D [mm]	D ["]	DN	G	B [mm]	H [mm]	b x s [mm]
8020012	12	3	30	6	60	65	Add
8020018	18	3	30	8	60	71	Add
8020021	21,3	3	30	8	60	74	Add
8020025	25,4	3	30	8	60	78	Add
8020027	26,9	3	30	8	60	80	Add
8020028	28	3	30	8	60	80	Add
8020034	34	3	30	10	60	87	Add
8020038	38	3	30	10	60	87	Add
8020040	40	3	30	10	60	93	Add
8020042	42,4	3	30	10	60	93	Add
8020048	48,3	3	30	10	60	101	Add
8020052	51/52	3	30	12	60	105	Add
8020060	60,3	3	30	12	60	113	Add
8020063	63,5	3	30	12	60	118	Add
8020070	70	3	30	12	60	123	Add
8020076	76,1	3	30	12	60	129	Add
8020080	80	3	30	15	60	133	Add
8020085	85	3	30	15	60	138	Add
8020089	88,9	3	30	15	60	142	Add
8020101	101,6	3	30	15	60	154	Add
8020104	104	3	30	15	60	156	Add
8020114	114,3	3	30	15	60	168	Add
8020130	129	3	30	15	60	182	Add
8020140	139,7	3	30	15	60	193	Add
8020154	154	3	30	15	60	207	Add
8020168	168,3	3	30	15	60	221	Add
8020204	204	3	30	15	60	257	Add
8020219	219,1	3	30	15	60	272	Add
